Tang Band W3-1878

3" (8cm) Breitbänder mit Bambusfaser- Membran und massiver Kupfer Phaseplug

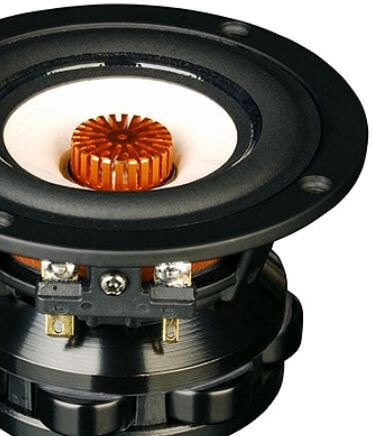

The Tang Band W3-1878 full-range driver features an underhung neodymium motor design that provides extended, linear response while reducing 2nd and 3rd harmonic distortion. The bamboo/paper cone is lightweight yet appropriately rigid and is terminated with a durable foam rubber half roll surround. A unique aluminum phase plug improves dispersion at the speaker's higher frequencies.

Specifications:

• Full-range capability
• Underhung voice coil
• Neodymium magnet structure
• Extremely low harmonic distortion
• Bamboo fiber paper cone
• Durable foam rubber surround
• Unique aluminum phase plug
• Power handling: 12 watts RMS/25 watts max
• VCdia: 3/4"
• Impedance: 8 ohms
• Re: 6.5 ohms
• Frequency range: 75-20,000 Hz
• Fs: 75 Hz
• SPL: 88 dB 1W/1m
• Vas: 0.11 cu. ft.
• Qms: 1.67
• Qes: 0.34
• Qts: 0.28
• Xmax: 4.2 mm
